- Südmo Powder Butterfly Valves - F250p-F251p
PRODUCT INFORMATION

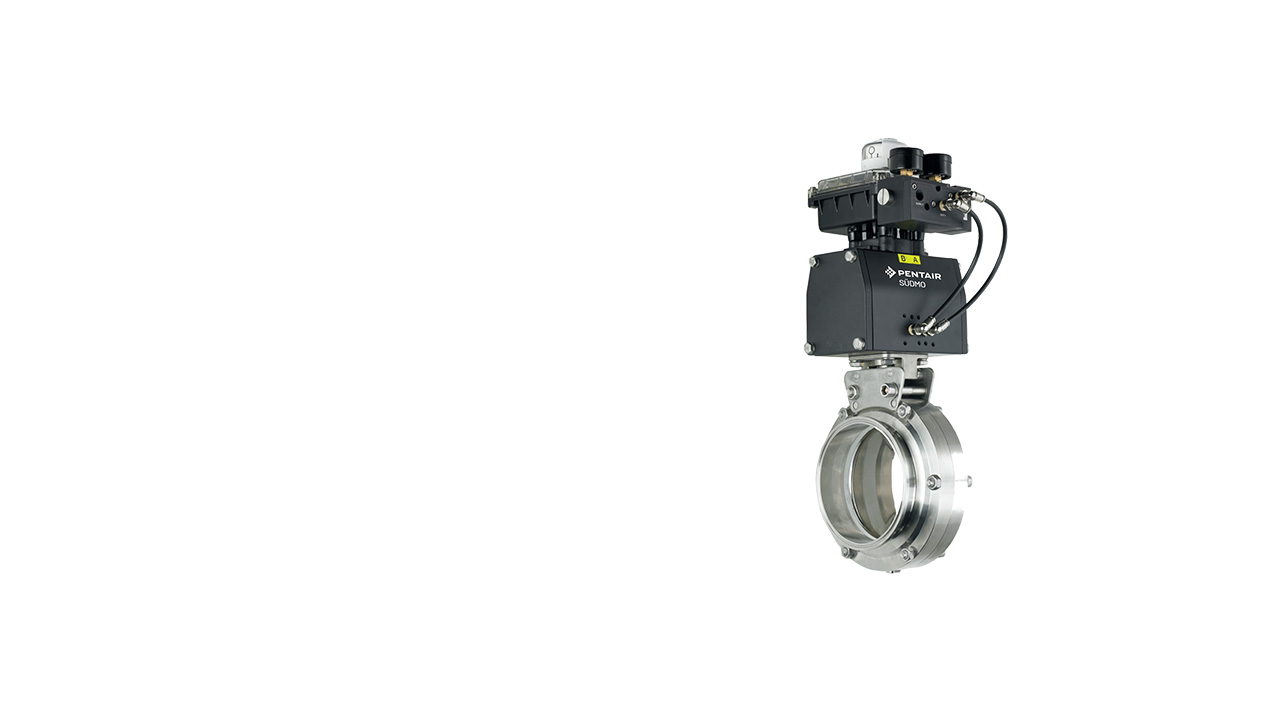

Südmo Powder Butterfly Valves F250P/F251P Ski-Jump are used in powder conveying/transport applications. Our comprehensive valve line features both manual and pneumatic drive options, including lockable handles and vertical actuators.
Benefits
- Maintenance friendly
- Site repairable
- Isolation or regulation control
- Full range of optional accessories
FEATURES
- Quarter turn operation
- Optional end connections
- One-piece disc and stem assembly
- Fully machined 316L/304L stainless steel body
- Bi-directional capability
- Equal percentage characteristics
- High Cv
- Slim profile disc
- Integral valve position indicator
- High grade seat materials for optimised life
- Ski-jump feature for optimised seat life
- Combination dual or multi position handle assembly
- High impact reinforced polymer handle with a stainless steel drive (full stainless steel option available)
- Integral padlocking as standard on manual valves.
-
FUNCTIONAL DESCRIPTION
-
Südmo Powder Butterfly Valve features advanced butterfly valve seat technology based on many years development while working closely with powder handling specialists. As a result the valve provides optimized performance in this harsh abrasive environment.
Pentair offers a variety of options that allow monitoring and control of the valves through a PLC control system via the Easymind control unit both standard and an IEC Ex version is available for Zone 22 installations.
-
FIELDS OF APPLICATION
-
The powder butterfly valves can be used for powder conveying in the food, dairy, pharmaceutical, and beverage industries.
DOWNLOADS
| TITLE | DOWNLOAD PDF | |
| Product leaflet | Südmo Powder Butterfly Valves F250P/F251P | Download |
| Instructions | Installation and Operation instructions | Download |
| Instructions | Repair and Maintenance Instructions | Download |
| Catalogue | Südmo Hygienic Components | Contact Us |
