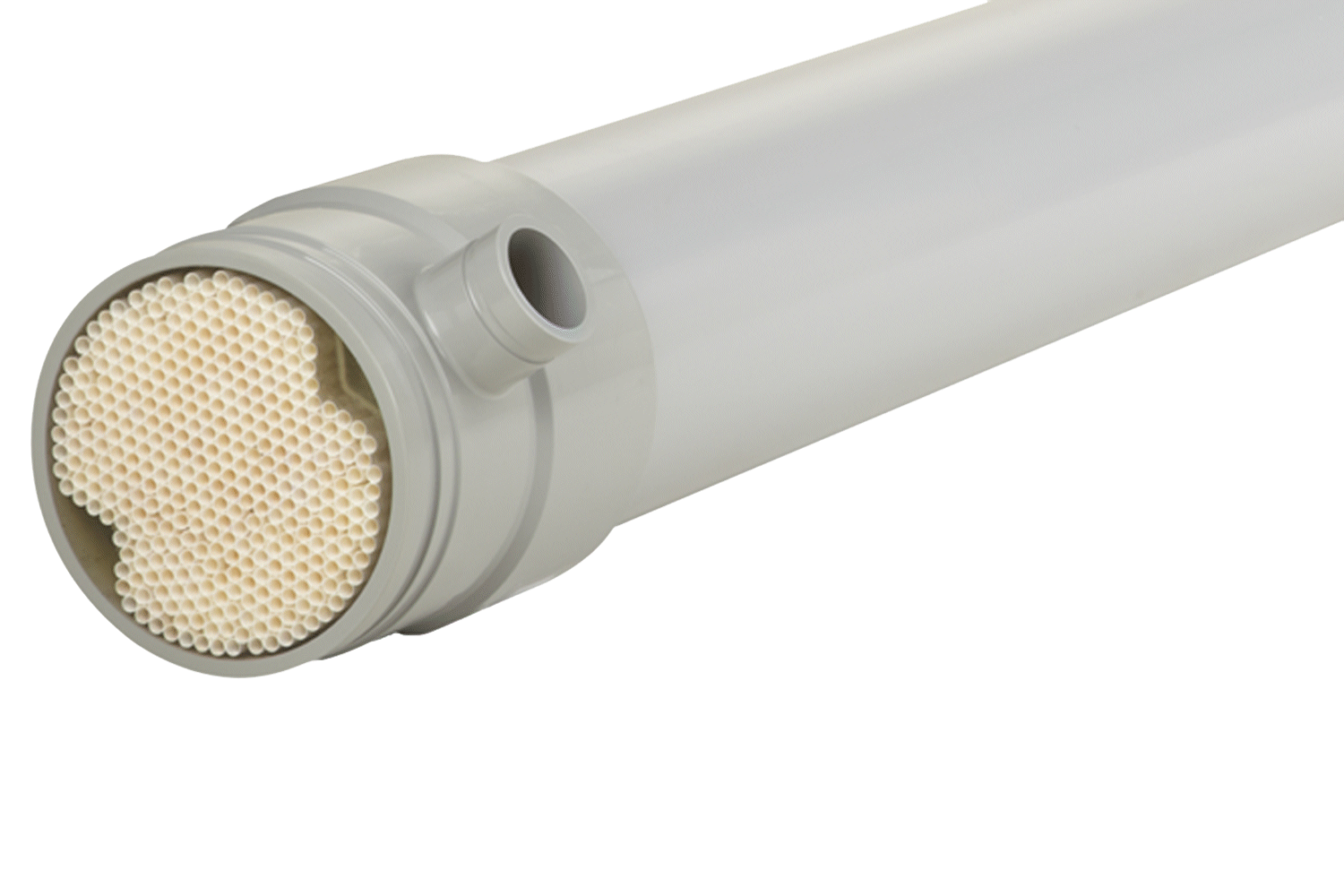

Compact 27 product detail page header triangle-overlay

X-Flow

Compact 27

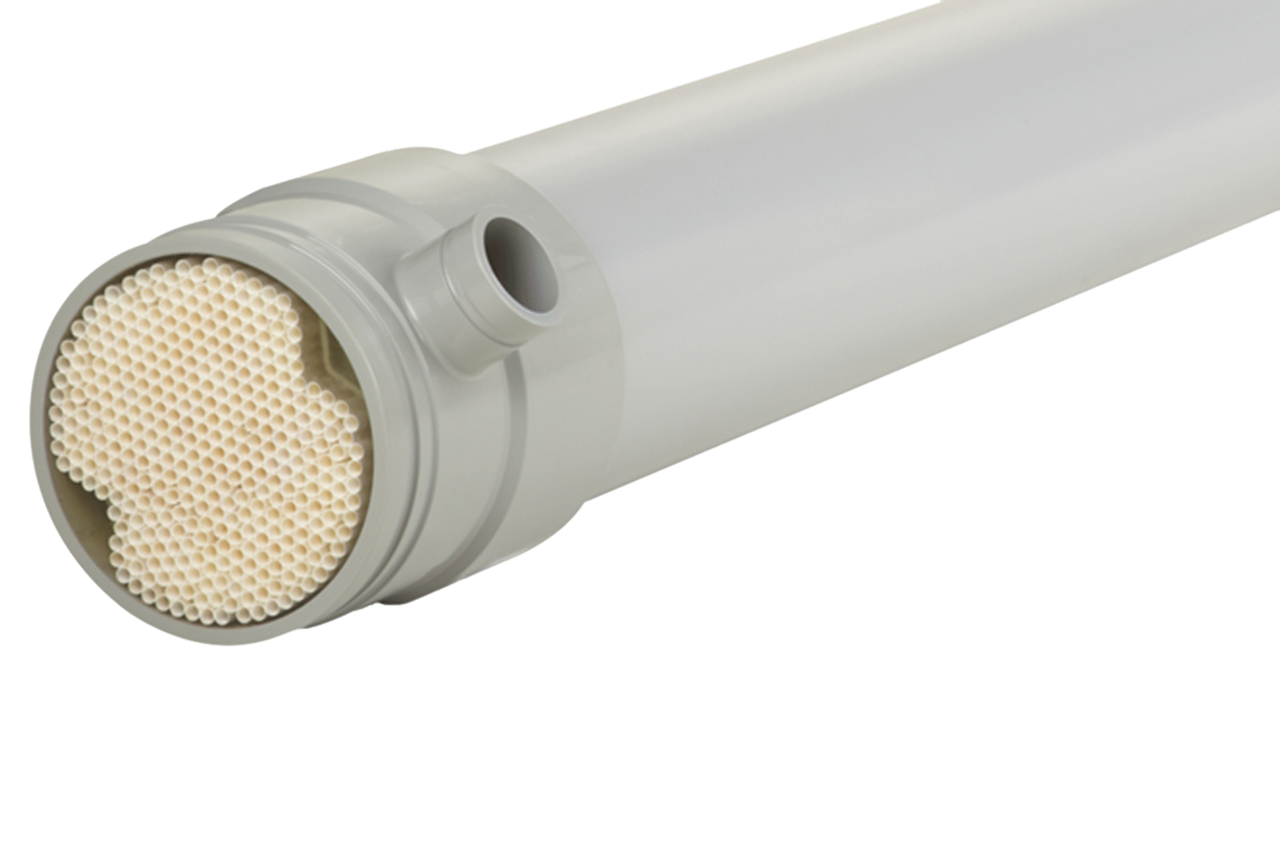

The Compact 27 is a tubular 8 mm ultrafiltration membrane very well suited for the separation of biological sludge, or any other high solids application (up to 40,000mg/l solids) in which high effluent quality is required. Separating at 0,03 micron, this membrane filter allows only water and dissolved matter to pass, rejecting everything that is undissolved. The filtrate can either be used directly in many applications, or be fed into another (RO) treatment system to remove the dissolved matter.

Interested?

Pentair X-Flow Helix logo slider

Features

  • Strong double-supported membrane tubes
  • Tight cut-off at 0,03 micron
  • Applicable for total suspended solids levels up to 25 g/l biomass
  • High tolerance to hypochlorite cleaning
  • High flux rates
  • Easily interchangeable
  • Also available with the X-Flow Helix technology, to  enhance flux and herewith performance by providing enhanced mixing and efficient removal of the cake.

Functional Description

for high solids applications


The Compact 27 holds 8mm tubular UF membranes, capable of treating streams with solid concentrations up to 40,000mg/l. The module can be applied in a Crossflow configuration. With operations in the typical cross-flow mode, and given the limited capacity per module, multiple modules can be connected in series to create the required capacity.

Our engineers can support you in determining the ideal plant size, number of membranes, best setup and configuration for your specific purposes.

The cross-flow mode, usually applied with this type of membrane module, is a process in which the medium to be filtered (e.g. the biological sludge) is pumped through the tubes of the filter, keeping the membranes clean.

Fields of application

The Compact 27 finds its use primarily in high solids applications, such as separating clean water from biological sludge in membrane bioreactors (MBR’s). The filtrate will be free from solids of any kind and typically have an SDI of < 3, making filtration with the Compact 27 a good pretreatment method for Reverse Osmosis if all dissolved matter needs to be taken out.
The Compact 27 can be used for the following applications:
  • Sludge separation in Membrane bioreactors (MBR’s)
  • Concentration of fermentation broth
  • Purification of yeast solutions
  • Concentration of biomass

Specifications - large scale

COMPACT 27

Membrane surface area
27 m²
Module dimensions (dxl)
8 inch x 3 meter
Housing material
PVC-C
Membrane material
Reinforced PVDF
Hydraulic membrane diameter
8 mm
Nominal pore size
30 nm
pH-range
2-11
Chlorine resistance
250,000ppm hours @ pH ≥10
Datasheet Compact 27
Datasheet Compact 27
Datasheet Helix
Datasheet Compact 27 Helix

COMPACT 27G

Membrane surface area
27 m²
Module dimensions (dxl)
8 inch x 3 meter
Housing material
GRP housing
Membrane material
Reinforced PVDF
Hydraulic membrane diameter
8 mm
Nominal pore size
30 nm
pH-range
2-11
Chlorine resistance
250,000ppm hours @ pH ≥10
Datasheet Compact 27
Datasheet Compact 27G
Datasheet Helix
Datasheet Compact 27G Helix

Connection configurations: to learn more about other X-Flow membrane modules and their connection configurations, please click here.
Replacement: in case you have Aquaflex modules, you can find your replacement alternative on the replacement page.
Helix technology: read more on our Helix technology page.



specifications - small scale & piloting

COMPACT 4.0G

Membrane surface area
4
Module dimensions (dxl)
3 inch x 3 meter
Housing material
GRP housing
Membrane material
Reinforced PVDF
Hydraulic membrane diameter
8 mm
Nominal pore size
30 nm
pH-range
2-11
Chlorine resistance
250,000ppm hours
Download datasheet
Datasheet Compact 4-0G

COMPACT 1.2

Membrane surface area
1,2
Module dimensions (dxl)
3 inch x 1 meter
Housing material
PVC
Membrane material
Reinforced PVDF
Hydraulic membrane diameter
8 mm
Nominal pore size
30 nm
pH-range
2-11
Chlorine resistance
250,000ppm hours
Download datasheet
Datasheet Compact 1-2
Connection configurations: to learn more about other X-Flow membrane modules and their connection configurations, please click here.
Helix technology: read more on our Helix technology page.

Featured cases (optional)

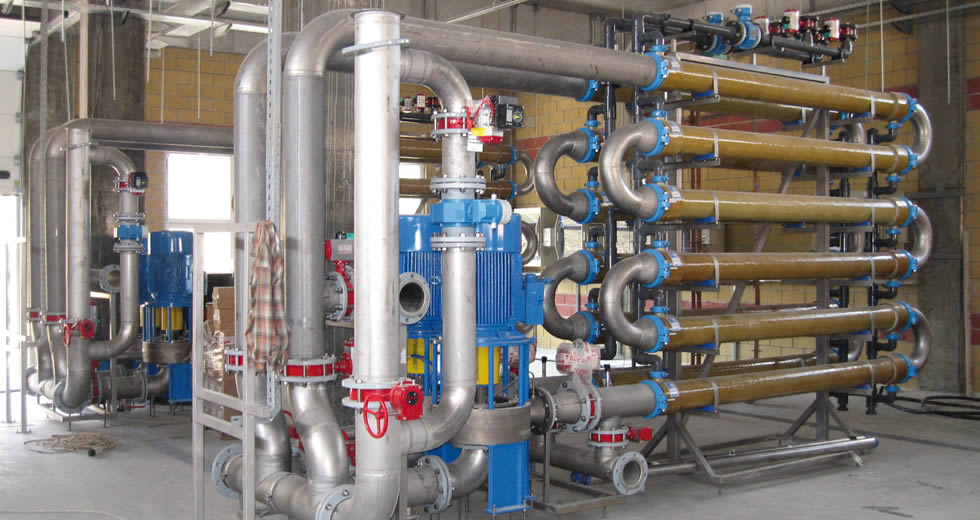

Istac slider image

istac,istanbul, turkey

leachate treatment
