X-Flow

P170A

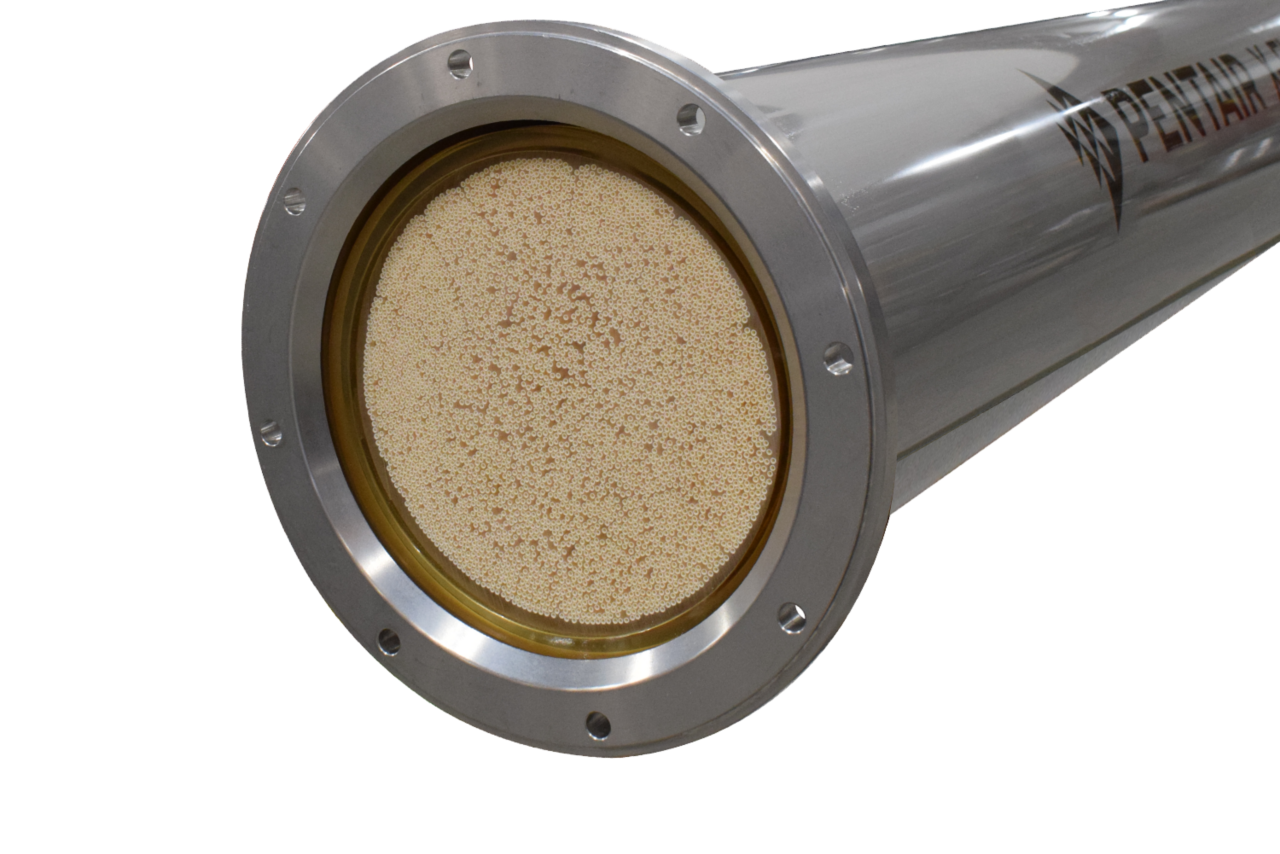

The P170A Membrane Element is a microfiltration insert used in food & beverage industry. For example for the separation of milk proteins and plant based proteins. The element is available as an insert and the stainless steel housing is a part of the installation. The membrane element is known for its added value in product quality and taste, production costs, and environmental impact.


Interested?

Multimedia

Pentair X-Flow P170A Membrane Element

Features

  • Sustainability
    - Low energy and water consumption.
    - Longer lifetime of the membranes.
  •  Quality
    - Higher whey and casein protein purity levels.
    - Excellent hygienic level.
  •  Reliable & Predictable Operation
    - Fully automated.
    - Resistant to variances in pressure, even negative pressures. Vertical orientation.
  •  Cost of Ownership
    - Lowest operational expenses.
    - Favorable CAPEX.
    - Lower foot print.
  • Optimized pore size distribution implying a reliable retention of casein proteins
  • Made from polyethersulphone – Ideal polymer for food contact, cleaning chemicals and high temperatures
  •  Long lifetime – guaranteed 4 years
  • Predictable expenses for the membranes, via a fixed fee per ton skimmed milk



Functional Description

Click the image to enlarge.

Process characteristics (Water, 20 degrees)

 HYDraulic membrane diameter crossflow flow rate (*)  pressure-drop across module at 1 m/s pressure drop across module at 2 m/s
 [mm/mil] m3/h/gpm)  (kPa/psi)  kPa/psi)
 1.5 {59] 26 x v [35 xv] 13 [2] 52 [8]

Fields of application

The P170A Membrane Element is an excellent choice for the filtration of:

  • Wines: Red, white, sparkling wines, must
  • Dairy: Separation Casein/Whey proteins, Whey concentration
  • Vinegar
  • Juices
  • Beer

Specifications

P170A MF02/1.5MM

Surface area
17 m2
Dimensions (dxl)
Approx. 220 X 1,020 mm
Housing material
Stainless steel
Material
Polyethersulphone
Diameter
1.5mm
Pore size
0.2 µm
pH-range
1 -13
Chlorine resistance
500 ppm max 250,000 ppm.h
Download datasheet

P170A MF02/3.0MM

Surface area
9 m2
Dimensions (dxl)
Approx. 220 X 1,020 mm
Housing material
Stainless steel
Material
Polyethersulphone
Diameter
3.0mm
Pore size
0.2 µm
pH-range
1 -13
Chlorine resistance
500 ppm max 250,000 ppm.h
Download datasheet

P170A MF08/1.5MM

Surface area
17 m2
Dimensions (dxl)
Approx. 220 X 1,020 mm
Housing material
Stainless steel
Material
Polyethersulphone
Diameter
1.5mm
Pore size
0.8 µm
pH-range
1 -13
Chlorine resistance
500 ppm max 250,000 ppm.h
Download datasheet
Connection configurations: to learn more about other Pentair X-Flow Membrane Elements and their connection configurations, please click here.
