X-Flow

R-100

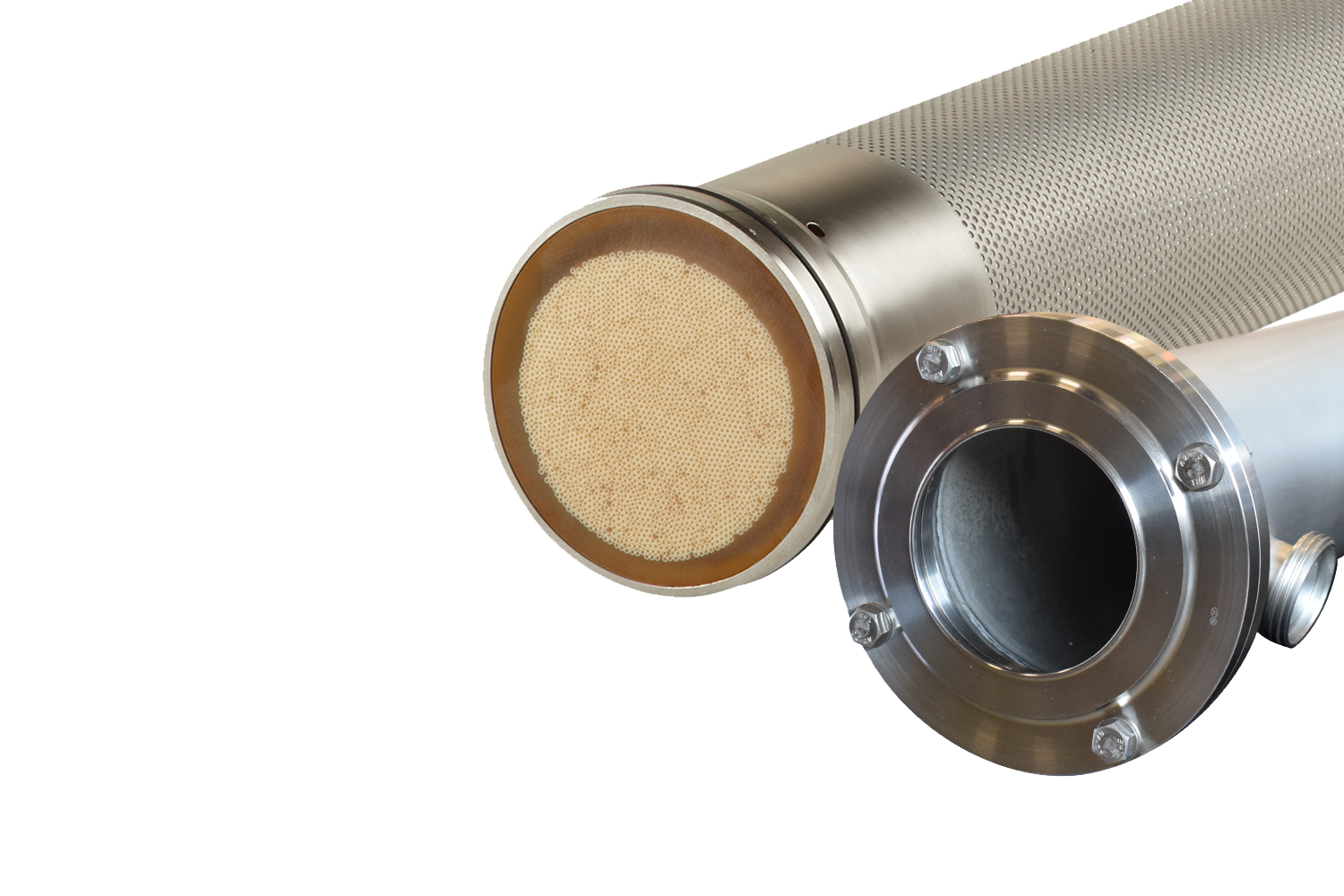

X-Flow’s R-100 capillary microfiltration membranes are the number one choice for the filtration of still and sparkling wines, must, and juices. Due to the great improvements in product quality and taste, production costs, and environmental impact, more than 20 percent of global wine production is now filtered with our membranes. Although the R-100 module was specifically developed for wine filtration, it is also an exceptional choice for dairy products and for oil/water separation. The module contains an outer housing (vessel) and an insert composed of about 2,100 capillaries.

Interested?

Multimedia

The module dimensions of the R-100 are 160.6X1.022mm.

Features

  • Microfiltration (MF) technology
  • Capillaries based on modified polyethersulfone
  • 9.3 m² filtration area per membrane
  • Surface properties allow greater control of colloid retention in wine
  • Reduces yeast and bacteria count to less than 1 cell/100 ml
  • Reduces turbidity level to less than 1 NTU
  • Maximum pore size of 0,2 micron (0,1 micron on average)
  • Unique asymmetric pore structure results in better backflush efficiency
  • Fully automatic operation
  • Testable and repairable
  • Suitable for high temperatures

Functional Description

the chosen method of filtration for wine, cider and grape juice

R-100 is a stainless steel module used for the filtration and clarification of aqueous solutions and beverages such as wine, juice and cider. With feed-and-bleed operation in cross-flow mode with regular backwashes, the R-100 membrane offers continuous (unmanned) operation and excellent throughput, eliminating the use and disposal of kieselguhr (diatomaceous earth): no CO₂ loss, no oxidation, no color loss, and no product loss with high recoveries of over 98 percent. Adjusting the filtration to different types of wine is relatively easy, and the wine quality is much less dependent on the staff than it is with diatomaceous earth.

Pentair X-Flow - R-100 double asymmetric pore structure

Fields of application

The X-Flow R-100 capillary microfiltration membranes can be used for every step in wine filtration, but also for juices, dairy and industrial processing.
The module is ideal when it comes to sanitary and high temperatures applications.

Specifications

R-100 MF02/1,5MM

Membrane surface area
9.3 m²
Module dimensions (dxl)
160.6X1.022mm
Housing material
Stainless steel AISI 316/316L
Membrane material
Polyether sulphone
Hydraulic membrane diameter
1,5mm
Nominal pore size
0,1 µ
pH-range
1 -12
Chlorine resistance
500 ppm max 250.000 ppm.h
Download datasheet
Datasheet R-100 MF

R-100 MF02/3,0MM

Membrane surface area
5.0 m²
Module dimensions (dxl)
160.6X1.022mm
Housing material
Stainless steel AISI 316/316L
Membrane material
Polyether sulphone
Hydraulic membrane diameter
3,0mm
Nominal pore size
0,1 µ
pH-range
1 -12
Chlorine resistance
500 ppm max 250.000 ppm.h
Download datasheet
Datasheet R-100 MF
Connection configurations: to learn more about other X-Flow membrane modules and their connection configurations, please click here.
