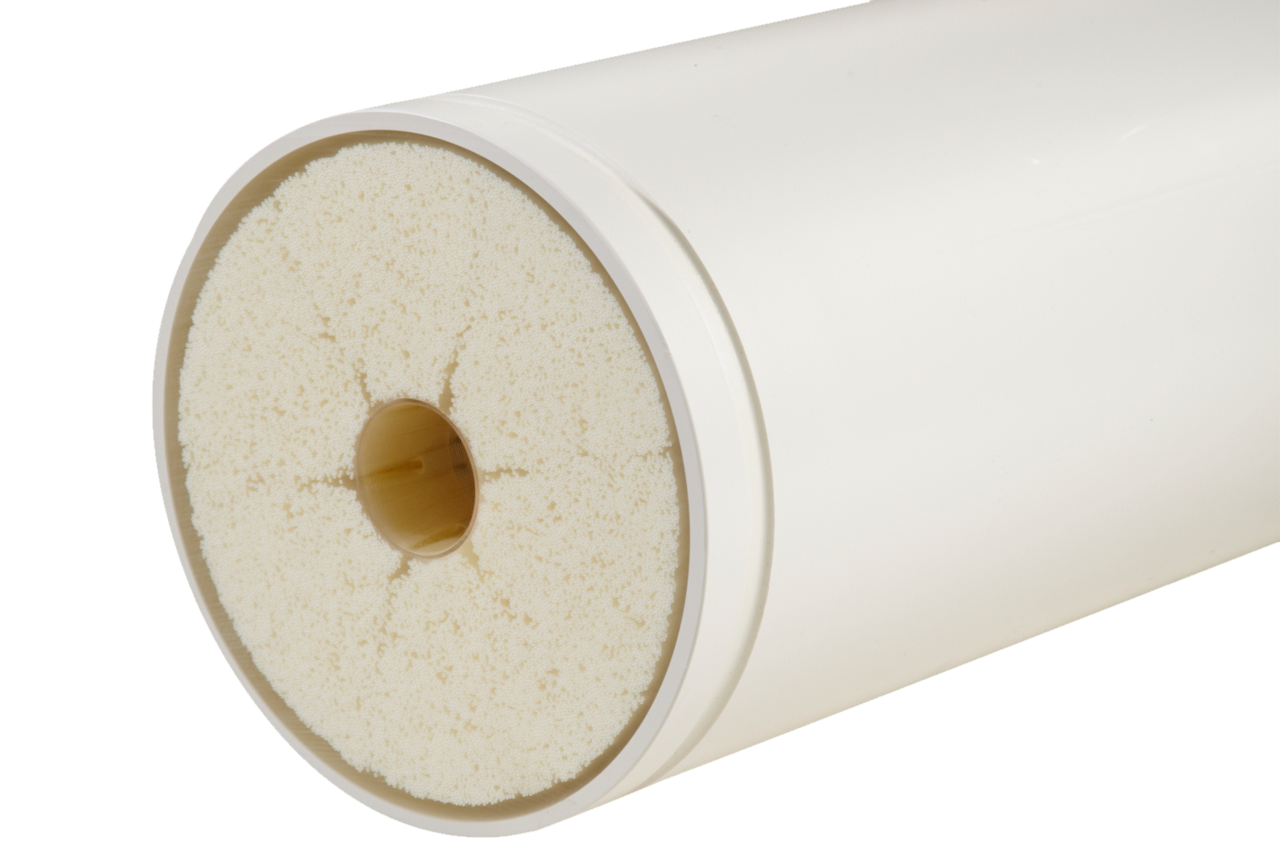

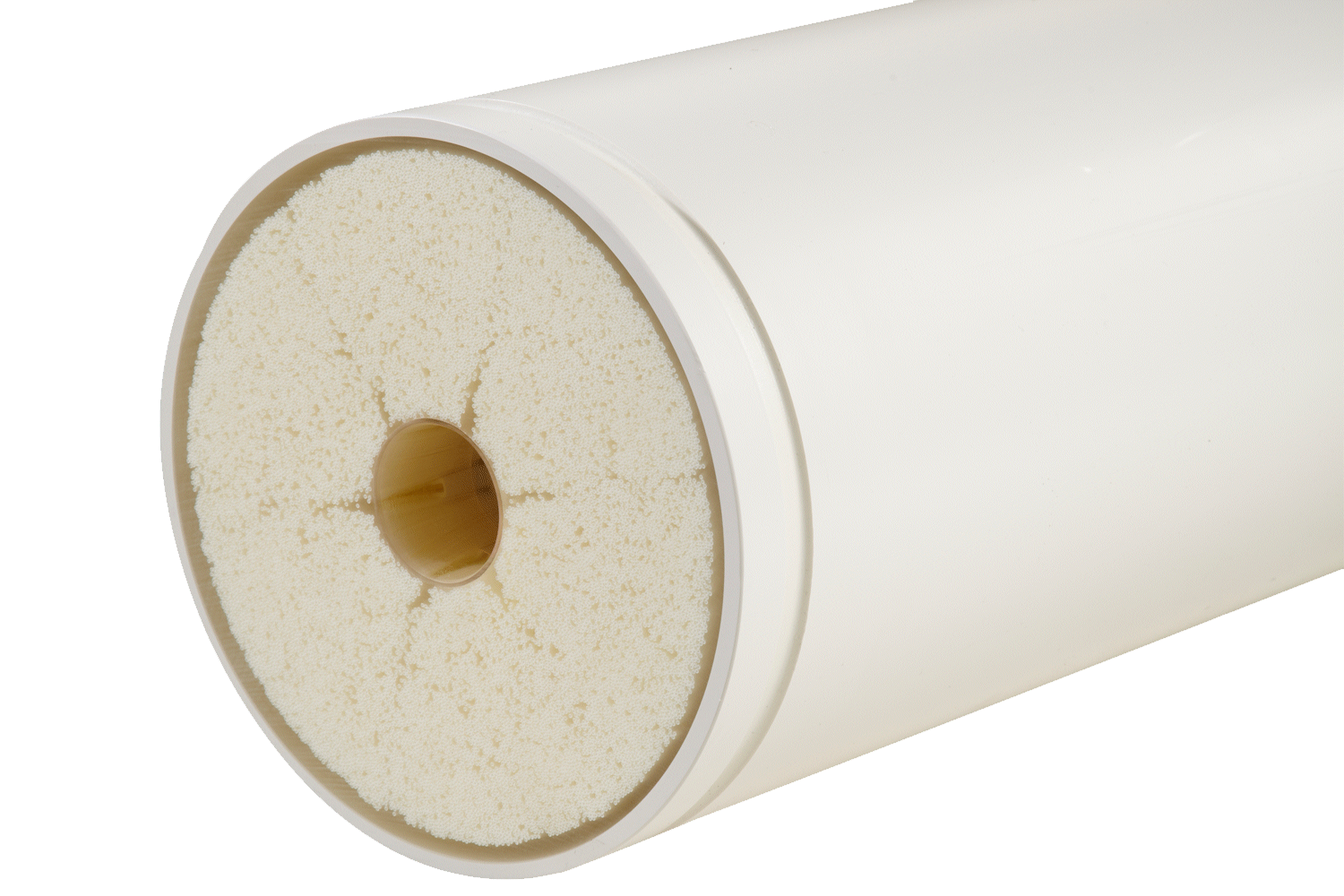

The Aquaflex membrane modules from X-Flow triangle-overlay

X-Flow

XF64

Pentair X-Flow XF64 Membrane Elements are based on hydrophilic hollow-fiber ultrafiltration membranes, composed of a PES/PVP blend. They have high mechanical and chemical strength, making them suitable for a wide range of applications. The pressurized membrane elements are the industry’s choice for the removal of bacteria, viruses, suspended solids, and colloids.

Interested?

Hollow fiber ultrafiltration

Features

  • Removal of microorganisms

    • 99.9999% (LOG6) reduction of bacteria (Pseudomonas diminuta)
    • 99.99% (LOG 4) reduction of viruses (MS2 coliphages) by mechanical means
  • High membrane packing density: One of the industry’s smallest free volume in a membrane elements
  • 100% integrity testing on individual fibers
  • Individual fiber repair
  • Very good antifouling behavior
  • Typical permeate quality:

    • SDI < 3
    • Turbidity < 0.1NTU
  • Excellent chemical resistance:

    • Wide pH range: 2 – 12
    • High chlorine stability:maximum free chlorine 250 mg/l
  • Typical high permeability: low energy consumption

Functional description

The core of the XF64 Membrane Element is the single-fiber, inside-out filtration process that delivers a robust solution. The Membrane Elements can be operated vertical and horizontal and can be utilized in three of Pentair X-Flow's unique Solutions:
  • Xiga
  • Aquaflex
  • X-Line

Fields of application

Potable water production
The X-Flow XF64 Membrane Elements provide superior separation performance and effective rejection of viruses and chlorine-resistant organisms such as Cryptosporidium and Giardia


Process water production
The XF64 Membrane Elements offer an effective barrier to suspended solids and silt. The permeate can be used directly or, if salinity and dissolved solids are not within the required limits, the permeate can be fed to a downstream RO system.


Effluent polishing

The X-Flow XF64 are a reliable solution to meeting the highest standards for turbidity and microbiology. The polished effluent is ready for high- grade and unrestricted reuse applications.


Pretreatment for Seawater Reverse Osmosis systems

X-Flow's XF64 offer an effective barrier to suspended solids and silt. The almost total removal of suspended solids protects the SWRO from fouling.

Specifications

XF64

Membrane surface area
64 m²
Module dimensions (dxl)
8.7” x 1537.5 mm
Housing material
PVC
Membrane material
PES/PVP
Hydraulic membrane diameter
0.77 mm
Nominal pore size
20 nm
The Pentair X-Flow XF64 Membrane Element is formally known as Aquaflex 64, Xiga 64, Seaflex 64 and Seaguard 64.

Featured cases

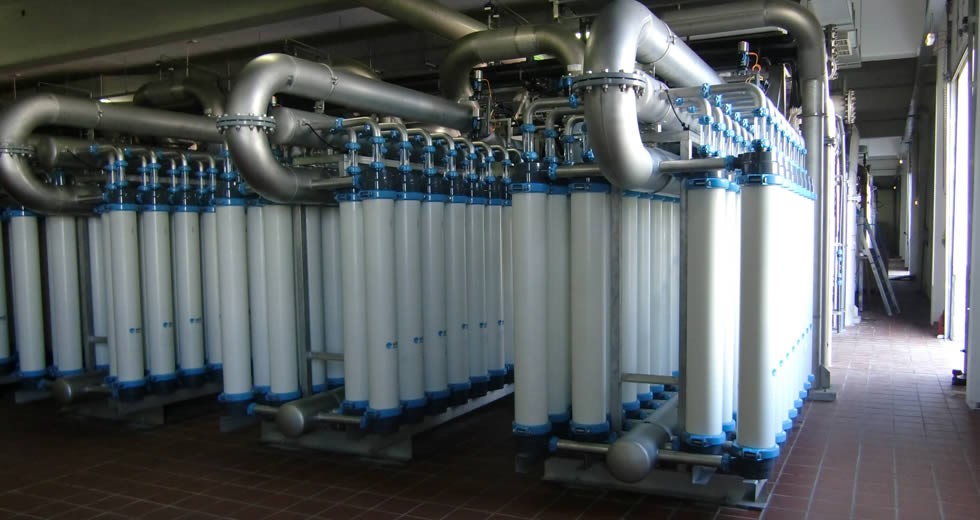

CocaCola slider image

wakefield, united kingdom

potable water production

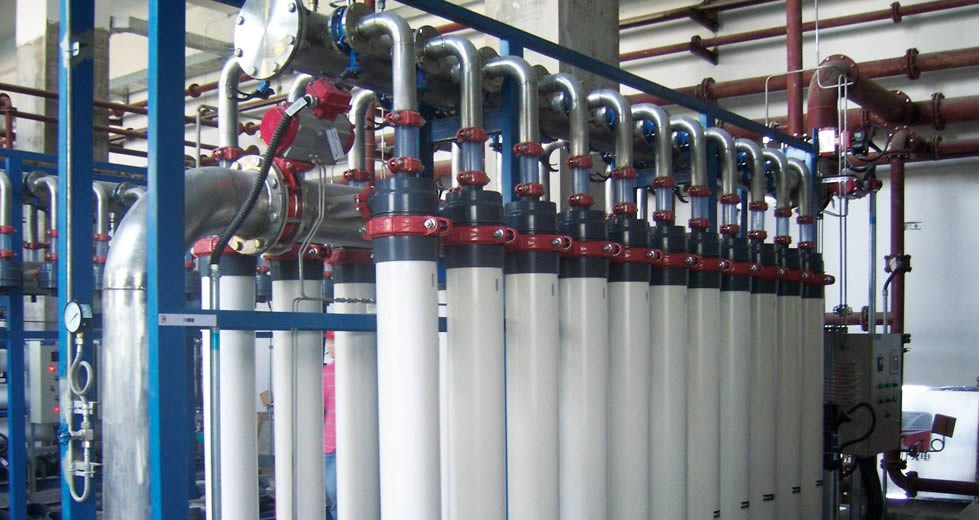

Witbank slider image

Emalalheni (Witbank) South Africa

Acid mine drainage

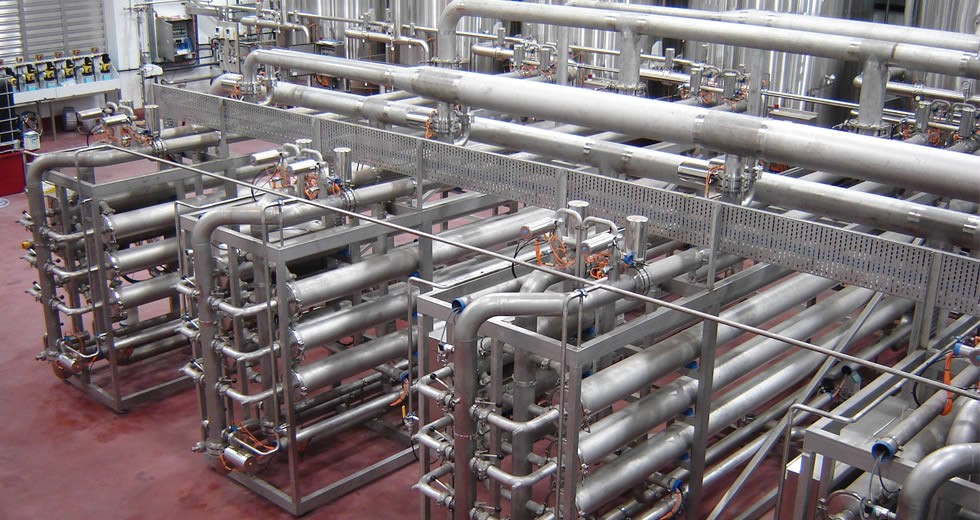

WTE-Moscow slider image

South-West Moscow

Surface water
